Sunday, 12 February 2012


Hello everyone,
I hope you all had a good week. Things at work are back to normal for the moment. It was really crazy, but I spent my free time working on he scullery to try and forget about the office.

Since Dewell Manor's kitchen is 24 inches by 20 inches,  I decided to take one area and build a proper scullery.

The first Item I put together was the Dish rack.

I started by drilling evenly spaced holes on some leftover pieces of lumber I had lying around. I then cut dowels to the height I wanted the dish rack, in this case enough for 3 levels.
When the dowels were through the supports, I spaced them using a 1 1/4 inch piece of wood and glued them into place

 Next, I put together the top and side of the dish rack box and glued in the dowel pieces when it was dry
I glued on the second side piece. For the back piece, I glued pieces of 1/8 inch x 1/16 inch lumber at the same level as the horizontal supports. Next, I took more dowels and glued them to line  up with the front piece. In the next picture, you see me adding another 1/8 , 1/16 inch piece of lumber to help support the dishes.

While the rack dried, I made the cup rack

This is just another piece of lumber 1/4 wide with holes drilled through. instead of using dowels for the cup pegs, I cut off the tips of cocktail toothpicks that had a nice detail. I made 2 of these, glued them onto 2 supports and added shelves, corbels, and 2 small dowels do look like supports for the top shelf.

Next came the sinks
I have 2 porcelain sinks in the kitchen, so I decided the scullery would have 2 other sinks. The first one is a wood sink victorians used to wash china (porcelain sinks would chip the dishes) and the second is a copper sink used for messy preperation (cleaning fish and washing pots and pans).

Both sinks are simple wood boxes on wood supports.
 I used embossing metal sheets for the copper sink. This is a fairly soft sheet of copper. It is easy enough to cut with a utility knife and very easy to fold. I first made a smaller wood box to fit into the sink. I glued down the bottom piece of metal, and then folded a strip around the sides which went over the top of the smaller box. (see above picture) I cut thin strips of the metal and glued those over the top of the copper sink to cover any wood you could see.
 In the above picture, I dropped the copper sink into the woood piece and covered the gap with 1/4 x1/8 molding strips.
Finaly, I drilled a whole in the bottom of the sink and filled it with a brass grommet (used for dollhouse electrifying) for the drain and I glued a piece of copper dowel underneath. I tried making faucets with , but they looked awful so I'm going to purchase them.

I made a small counter with a drawer that goes under the plate rack. It has a small lip to help guide the water that drips from the dishes into the wood sink. The counter between the 2 sinks is a piece of wainscott sample I had. The grooves are just the right size to send the water back into the sink when pots are drying. I painted everything to look like dark wood.

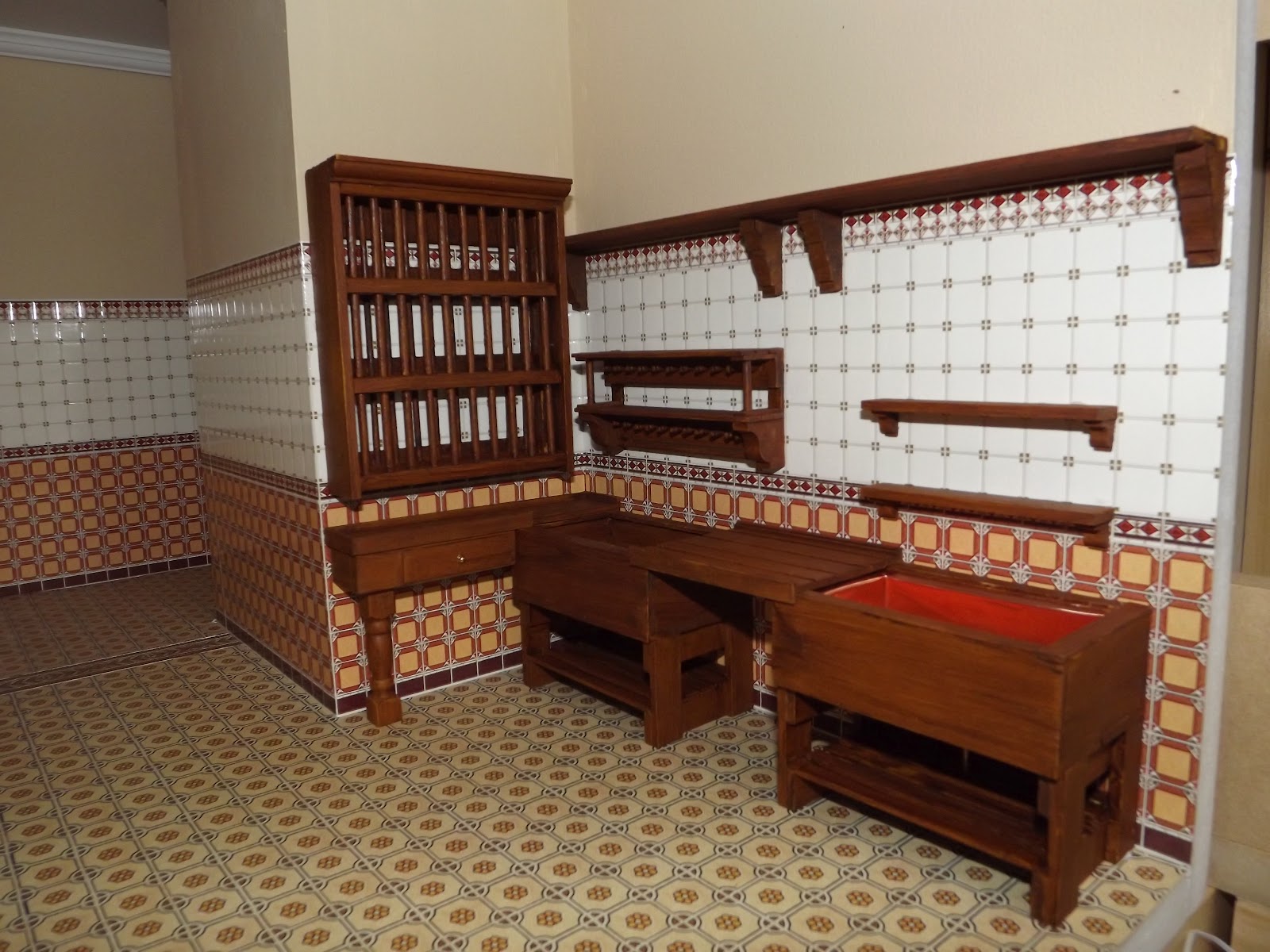

And once everything was dry, I glued it all into place
I also put together a clothes rack that will hang from the ceiling in front of the kitchen stove

 I'm not going to hang it yet. I want to eventually purchase a wrought iron pot rack and will decide what the best placement for both item is.

If anyone is interested in Victorian kitchens I found a wonderful British series called "Victorian Kitchen":

It's a 9 episode series in which they repair a real victorian kitchen, hire a cook who started off as a scullery maid in the late 1920s and she prepares food in the same way the victorians did. The first episode has a lot of information about how the kitchen  was set up.

I also reccomend a book called "The Victorian House" by Judith Flanders. It talks about everything in the victorian middle class home. It gives a good idea of the work that servants went through on a daily basis.

Next I will tackle the 3 unfinished rooms of the second floor. I've been putting it off bcause I didn't feel like cutting all the floor planks, but now I have to in order to go forward.

I also want to thank Maria from for giving me a Blog Fantabuloso award! My first award! Thank you so much Maria, I REALLY appreciate it and it means a lot coming from you.

I hope you all have a wonderful week and I wish you all the best,
